STUDIO 3 FREESTANDING INFORMATION
|Width||Height||Depth||Weight||Max. Log Length||Nominal Heat
Output & Range
|Energy Efficiency Class|
|1389mm||516mm||445mm||192kg||500mm (20″)||11.0kW (3.8-16kW)||A|
|High efficiency||up to 80%|
|Boost setting for lighting and re-fueling|
|Removable steel and TCL baffles|
|TCL firebox lining|
|Radiant heat and convected heat|
|Optional warm air ducting system|
|Top flue connection||Internal Ø – 153mm (6”)|
|Optional black glass top plate|
|Optional decorative black flue ring cover|
|Decorative square section flue cover||15 x 1800 x 212mm (wxhxd)|
|Optional Heat Shield kit*|
|Stove bench compatible|
*Available when fitted to a Riva Bench.

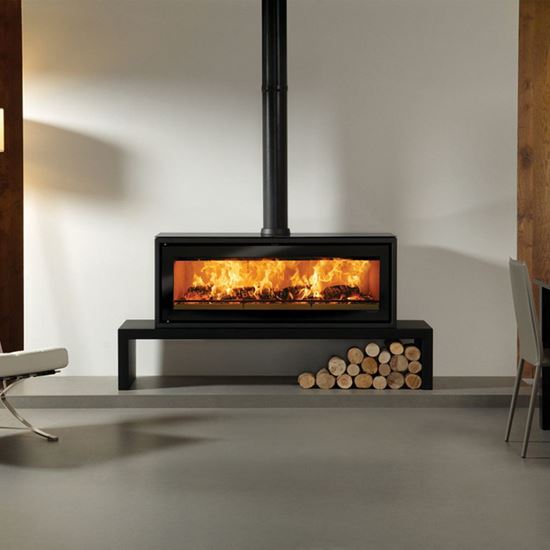

The Studio Freestanding range has been designed to create a striking feature in your living space with their enticing widescreen wood burning flame visuals complemented by an extensive array of frames and styling options.
The pure, simplistic form of the Studio stove range belies the high levels of engineering and technical innovation that keeps this range not only at the forefront of twenty first century fire design, but also exceptional performance and controllability.
All Studio stoves are designed for wood burning only.
